CW1212SK17F-Z85 5 Axis CNC Center
- tool changing system adopt carousel type ,10 pcs tools ,support HSK 63F ER40 ,ISO30 ER32 clamp
- Customized working table size
- Twin table for working exchange , high efficient

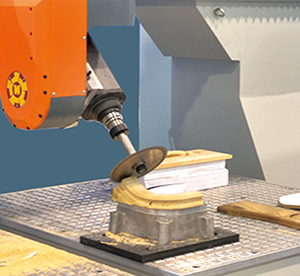

- Optional parts circle saw unit ,milling unit
- Five axis head adopt JH technology ,gapless worm driving system , powerful output torque ,good rigidity ,adjustable backlash
- Automatic lubrication system , automatic exhausting ,controller by software
- Control cabinet adopt temperature control unit , Intelligent Dustproof System ,electric units protection system
Share This Product
| Model No. | CW1212SK17F-Z85 | CW3015SK17F-Z85 | |
| Stroke X x Y x Z | 3300mm x2000mm x900mm | 3800mm x2800mm x150mm | |
| Stroke B | ±100(0-200) | ±100(0-200) | |
| Stroke C | ±200(0-400) | ±200(0-400) | |
| Table X x Y x Z | 1220mm x1220mm | 3000mm x2000mm | |
| Driving system X&Y&Z axis | Ball screw | Ball screw | |
| Rapid traverse | 60m/min | 60m/min | |
| Accuracy | 0.02mm | 0.02mm | |
| Spindle Unit | Spindle No. | 1 | 1 |
| Spindle Power | 9kw ISO30 24000RPM 5 axis air cooling spindle
12kw ISO30 24000RPM 5 axis water cooling spindle 18kw ISO30 12000RPM 5 axis water cooling spindle |
9kw ISO30 24000RPM 5 axis air cooling spindle
12kw ISO30 24000RPM 5 axis water cooling spindle 18kw ISO30 12000RPM 5 axis water cooling spindle |
|
| Spindle RPM | 1000-24000RPM/min | 1000-24000RPM/min | |
| Tool changing unit | Type | Carousel | Carousel |
| No of tools | 10 pcs | 10 pcs | |
| Controller system | Syntec | Syntec | |
| Weight | 6T | 8T | |
