Swinks C2416K12F-2HD CNC Center

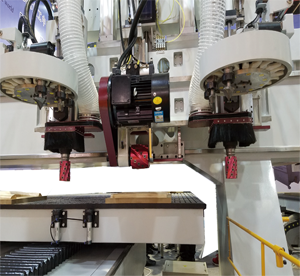

- Double tool changing units with carousel type , automatic changing tool with 20 pcs tools , high efficient
- Double routing system ,support HSK 63F 20 tool units
- Mulit-function : planing unit ,process customized curved surface, siding drilling holes

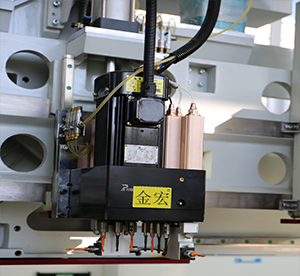

- Drilling unit 7 vertical +2 horizontal drilling
- Automatic lubrication system , automatic exhausting ,controller by software
- Control cabinet adopt temperature control unit , Intelligent Dustproof System ,electric units protection system
Share This Product
| Model No. | C2416K12F-2HD | |
| Stroke X x Y x Z | 3660mm x1700mm x230mm | |
| Table X x Y x Z | 2440mm x1600mm | |
| Machine X x Y x Z | 4500mm x3000mm x2600mm | |
| Driving system X&Y&Z axis | Ball screw | |
| Rapid traverse | X&Y ≥30m/min ,Z ≥15m/min | |
| Accuracy | Geometric accuracy :0.04mm/200mm
Repositioning accuracy :≤0.03mm Processing accuracy :±0.1mm/mm |
|

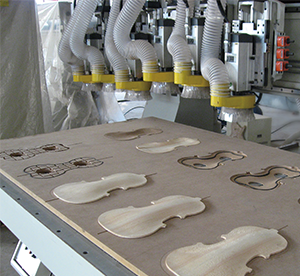

| Spindle Unit | Spindle No. | 2 |
| Spindle Power | 9-12KW Italian HSD air cooling spindle ,HSK 63F PT400 | |
| Spindle RPM | 1000-24000RPM/min | |
| Drilling unit | 7 vertical drilling+2 horizontal | |
| Planing unit | 7.5kw 8000RPM | |
| Tool changing unit | Type | Carousel |
| No of tools | 20 pcs | |
| Controller system | Syntec | |
| Weight | 4T | |
